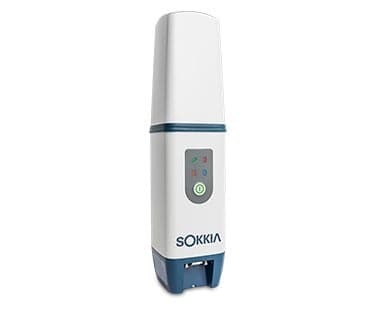

GCX3 GNSS Receiver

Sokkia

GNSS / GPS

GCX3 GNSS Receiver

Compact and lightweight GNSS receiver for local base-rover RTK and network RTK surveying.

متوفر لدى

Surveying Systems Tunisia

موزع معتمد لـ Topcon و Sokkia

نظرة عامة على المنتج

أداء احترافي لأعمال المسح.

The Sokkia GCX3 is a compact GNSS receiver designed for local jobsite base-rover RTK and network RTK applications. Its cable-free design, integrated antenna and multi-constellation tracking provide a portable positioning solution for professional surveying workflows.

الميزات الرئيسية

أبرز مزايا المنتج

226 optimized satellite tracking channels

Multi-constellation GNSS tracking

Second-generation POST2 integrated antenna

Compact and lightweight cable-free design

Designed for base-rover and network RTK

Wireless multi-channel Sitecomm technology

Long-range Bluetooth communication

IP67 environmental protection

المواصفات التقنية

التفاصيل التقنية

Channels
226
Satellite Systems
GPS, GLONASS, BeiDou, Galileo, SBAS and QZSS
Static / Fast Static Accuracy
H: 10 mm + 0.8 ppm / V: 15 mm + 1.0 ppm
Internal Memory
Up to 8 GB
Bluetooth
Bluetooth v2.1 + EDR
Protection
IP67
Dimensions
47 × 197 × 47 mm
Battery
Internal non-removable battery
Operating Time
Up to 10 hours

مجالات الاستخدام

مصمم لسير العمل الاحترافي.

Local base-rover RTK surveyingNetwork RTK surveyingLand surveyingTopographic surveyingConstruction positioningSite layoutGIS and mapping

الوثائق

كتيبات المنتج

اطلع على وثائق الشركة المصنعة المتوفرة لهذا المنتج.

GCX3 GNSS Receiver الكتيب

تحميل PDF
